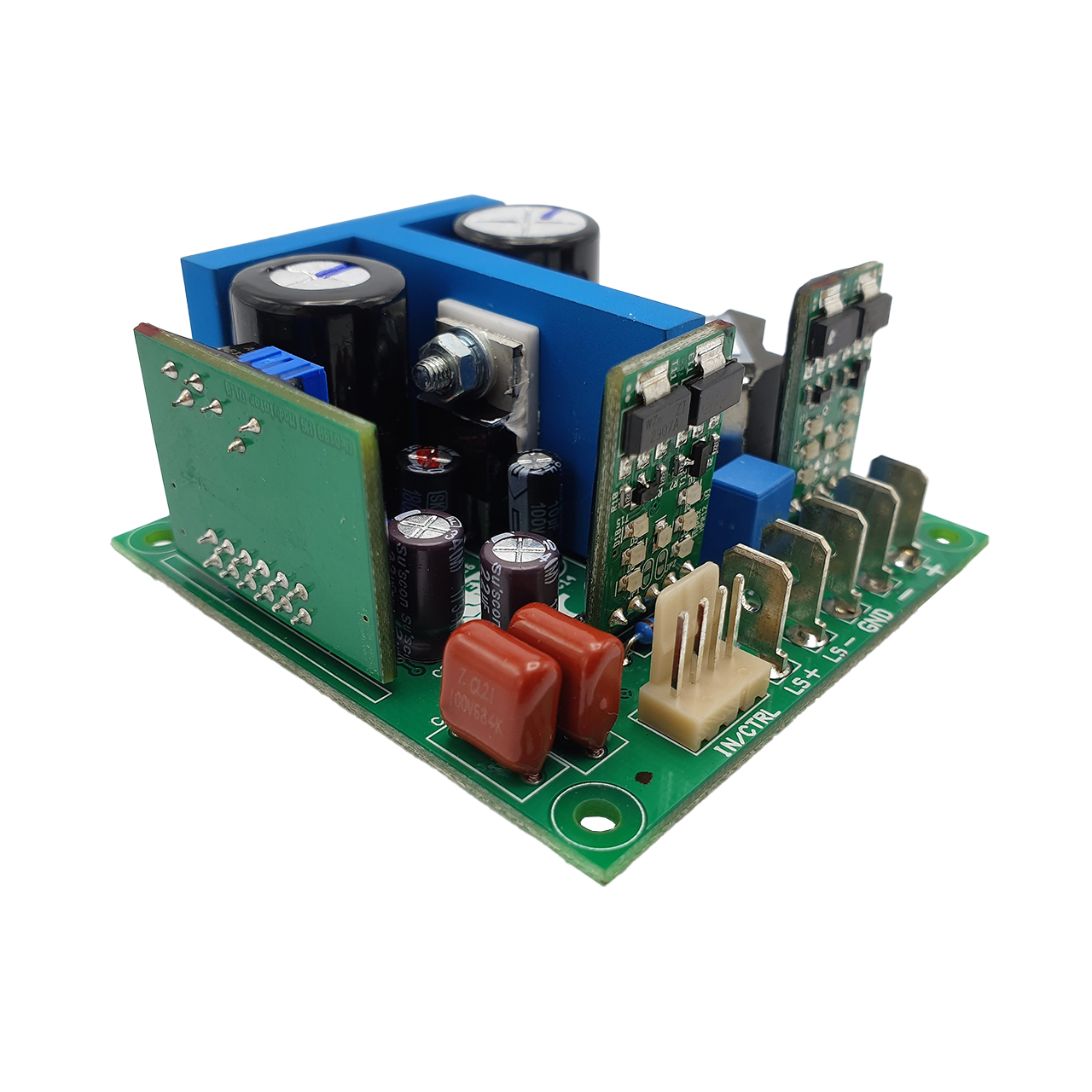

UcD180HG with HxR

H01U000649
MSRP:
€89.00
Product information "UcD180HG with HxR"

Unlock the full potential of your audio system without breaking the bank with the DIYclassD UcD180HG with HXR. Designed for discerning audio enthusiasts and ambitious DIY builders, this Class D amplifier module strikes the perfect balance between high-quality performance and affordability.

Imagine harnessing 180 watts delivered into a 4-ohm load, ready to drive your medium to high-demand speakers with effortless authority. With the UcD180HG, you'll experience dynamic, clear, and powerful audio that brings every detail of your music to life. Engineered to offer robust power output, this amplifier module ensures your listening sessions are nothing short of spectacular.

What sets the UcD180HG apart are its HxR voltage regulators. These advanced regulators feature cutting-edge circuitry designed to minimize distortion and enhance audio clarity. As a result you receive a high-fidelity sound experience with remarkable detail and accuracy, everything you'd expect from a premium amplifier, but at a highly competitive price.

The efficiency of UcD™ Class D technology is central to the UcD180HG's design. It delivers quality audio with minimal heat generation, ensuring maximum efficiency. Enjoy sound quality while keeping energy waste to a minimum.

With its compact and modular design, the UcD180HG is incredibly versatile. Whether you're starting a new build or upgrading an existing setup, this amplifier integrates seamlessly into a wide range of audio projects. Its flexibility and ease of use make it an ideal choice for those who seek both performance and value.

To fully realize the potential of the UcD180HG, pair it with a suitable power supply such as the SMPS400A180 or SMPS1200A180. These power supplies are specifically designed to meet the module's specifications and ensure optimal performance.

Discover the outstanding value and performance of the DIYclassD UcD180HG with HXR today and achieve audio quality without overspending.

FEATURES

  • • Pop-free start and stop control
  • • Differential audio input
  • • Clip indicator
  • • Overcurrent and over voltage protection
  • • No compromise components
  • • LM4562 buffer OpAmp
  • • HxR12 mounted
  • • Ultra-low noice
  • • Improved on-board buffer supply

POSSIBLE APPLICATIONS

  • • Audiophile power amplifiers for home and professional use

CONTENTS OF PACKAGING

  • • UcD180HG with HxR amplifier module
  • • Mounting set UcD
  • • Manual
  • • Manual HxR
Power (4Ω): 180W
Power (8Ω): 120W
Channels: 1
HxR Ready : On board
Recommended SMPS: SMPS400A180 or *SMPS1200A180 (no DC error protection)
Voltage +/-: 46V
