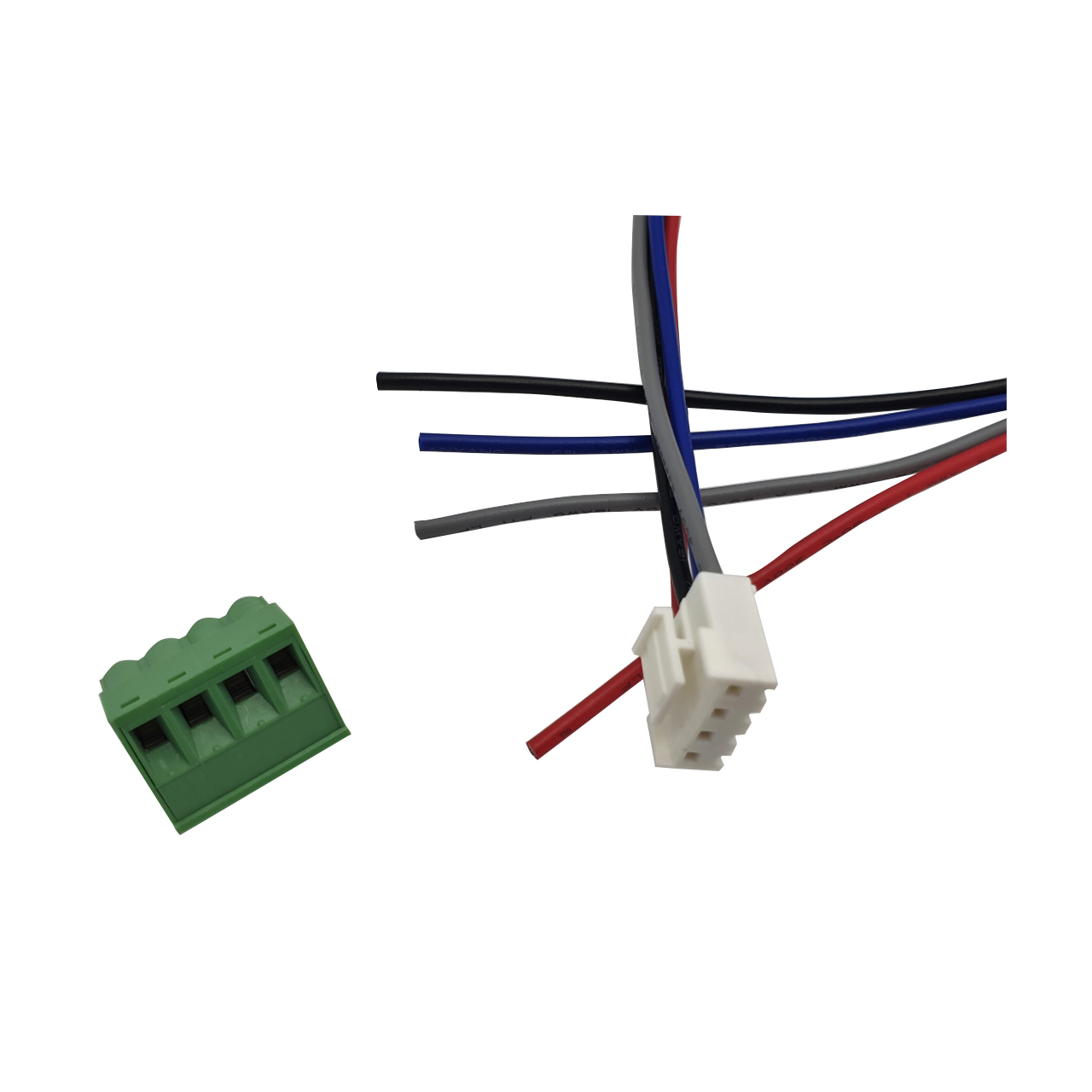

The cable set loudspeaker FA 1 way is a complete cable set to connect your 1 way Fusion Amp with your loudspeaker. This is the same loudspeaker cable set as supplied with new Fusion Amps.The length of the cable is 125cm.
The cable set loudspeaker FA 3 way is a complete cable set to connect your 2 or 3 way Fusion Amp with your loudspeaker. This is the same loudspeaker cable set as supplied with new Fusion Amps. The length of the cables is 125cm.

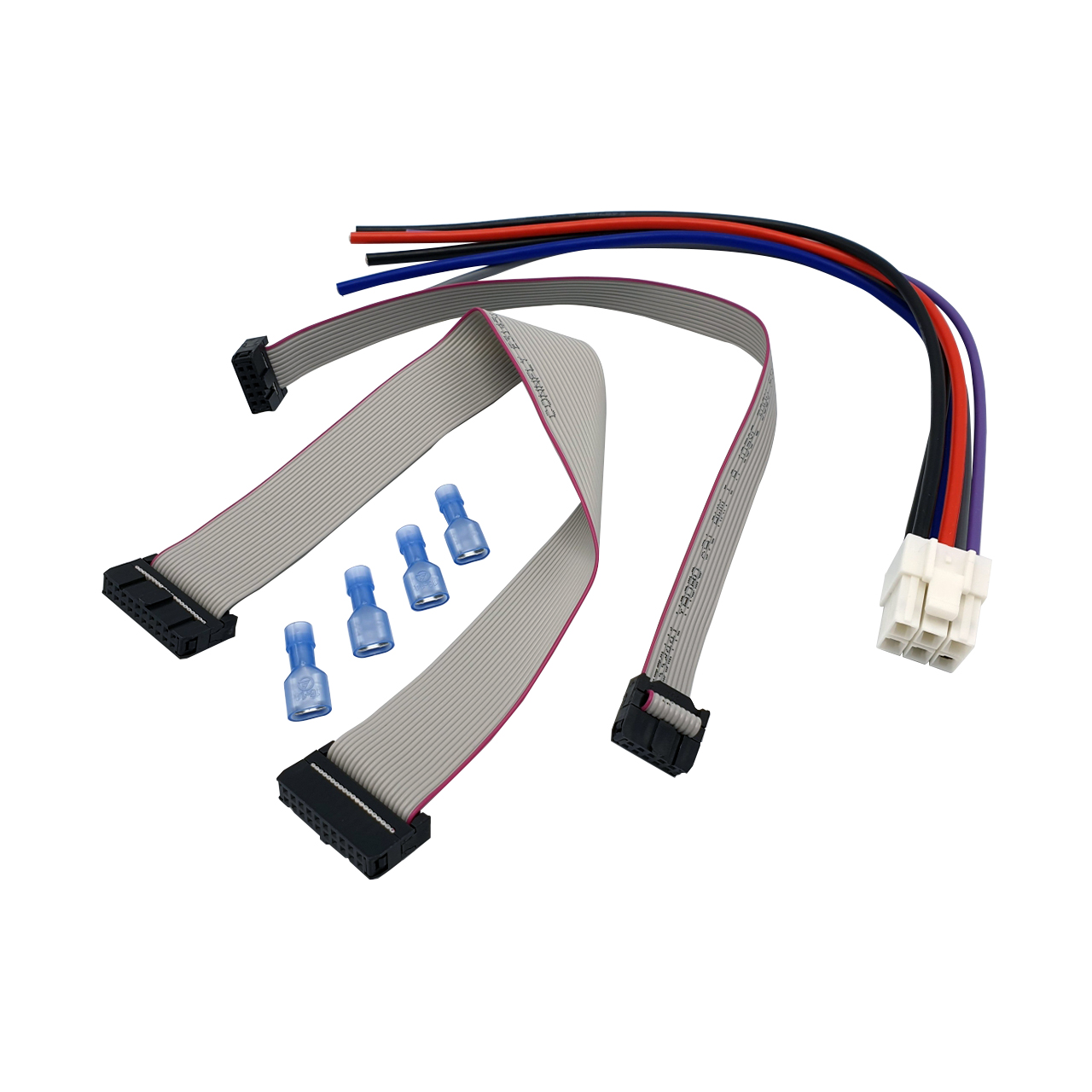

The cable set SMPS3k is a complete set of cables to connect the SMPS3k to one amplifier module. If you want to connect 2 or 3 amplifiers you'll need 2 or 3 cable sets. Cable length: 30cm
This goldplated RCA connector can be used for your amplifier case to connect your audio signal from your pre-amplifier. The connector is isolated by teflon rings. The mounting hole must be 9.5mm in diameter.
The goldplated RCA connector can be used for your amplifier case to connect your audio signal from your pre-amplifier. The connector is isolated by teflon rings. The mounting hole must be 9.5mm in diameter.
This goldplated RCA connector can be used for your amplifier case to connect your audio signal from your pre-amplifier. The connector is isolated by teflon rings. The mounting hole must be 9.5mm in diameter.
Goldplated binding post to connect your loudspeakers with your amplifier chassis. For banana plug, spade plug and bare wire connections. This binding post can be mounted as a set with the black spacer or as two single connectors.
This set of 10 pieces isolated blue fastons can be used for several purposes like connecting your transformer or power supply to your power connector. To mount these on your cable you can use our Faston crimping tool. These Fastons are for cables between 1.5-2.5mm. Fits the UcD series.
This set of 10 pieces isolated red fastons can be used for several purposes like connecting your transformer or power supply to your power connector. To mount these on your cable you can use our Faston crimping tool. These Fastons are for cables between 0.5-1.5mm. Fits the UcD series.
50cm balanced signal cable with 4-pin connector also providing the enable signal.
Specifications
The QuietConduit cable design incorporates several refinements over normal balanced cables. A conductive polymer interface layer between the braid shield and the insulation of the signal conductor short-circuits triboelectric currents where they are generating, virtually eliminating microphonic noise pickup.
A secondary benefit of this layer is to improve the electrostatic shielding effectiveness of the braid shield. Another crucial improvement is the elimination of drain wires, which is normally included for ease of termination but which allow shield currents to couple noise asymmetrically into the signal conductors. The geometry of the QuietConduit cable is precisely controlled, insuring that any noise coupling is strictly limited to common mode.
This IEC 60320 C14 power connector with fuse holder can be used in your amplifier housing to connect the mains power to your amplifier supply. This power connector is capable to handle 10A at 230V. At the back are Faston terminals for easy connection. The mounting hole must be 32.5x27mm. Fuse not included.
This on-off switch can be used as a main switch for your amplifier cabinet. This snap-in switch can handle 16A at 230V. The mounting hole is 31 x 11mm and ~ 25mm deep including the faston terminals.
50cm balanced signal cable with 4-pin connector also providing the enable signal. Specifications The QuietConduit cable design incorporates several refinements over normal balanced cables. A conductive polymer interface layer between the braid shield and the insulation of the signal conductor short-circuits triboelectric currents where they are generating, virtually eliminating microphonic noise pickup. A secondary benefit of this layer is to improve the electrostatic shielding effectiveness of the braid shield. Another crucial improvement is the elimination of drain wires, which is normally included for ease of termination but which allow shield currents to couple noise asymmetrically into the signal conductors. The geometry of the QuietConduit cable is precisely controlled, insuring that any noise coupling is strictly limited to common mode.
