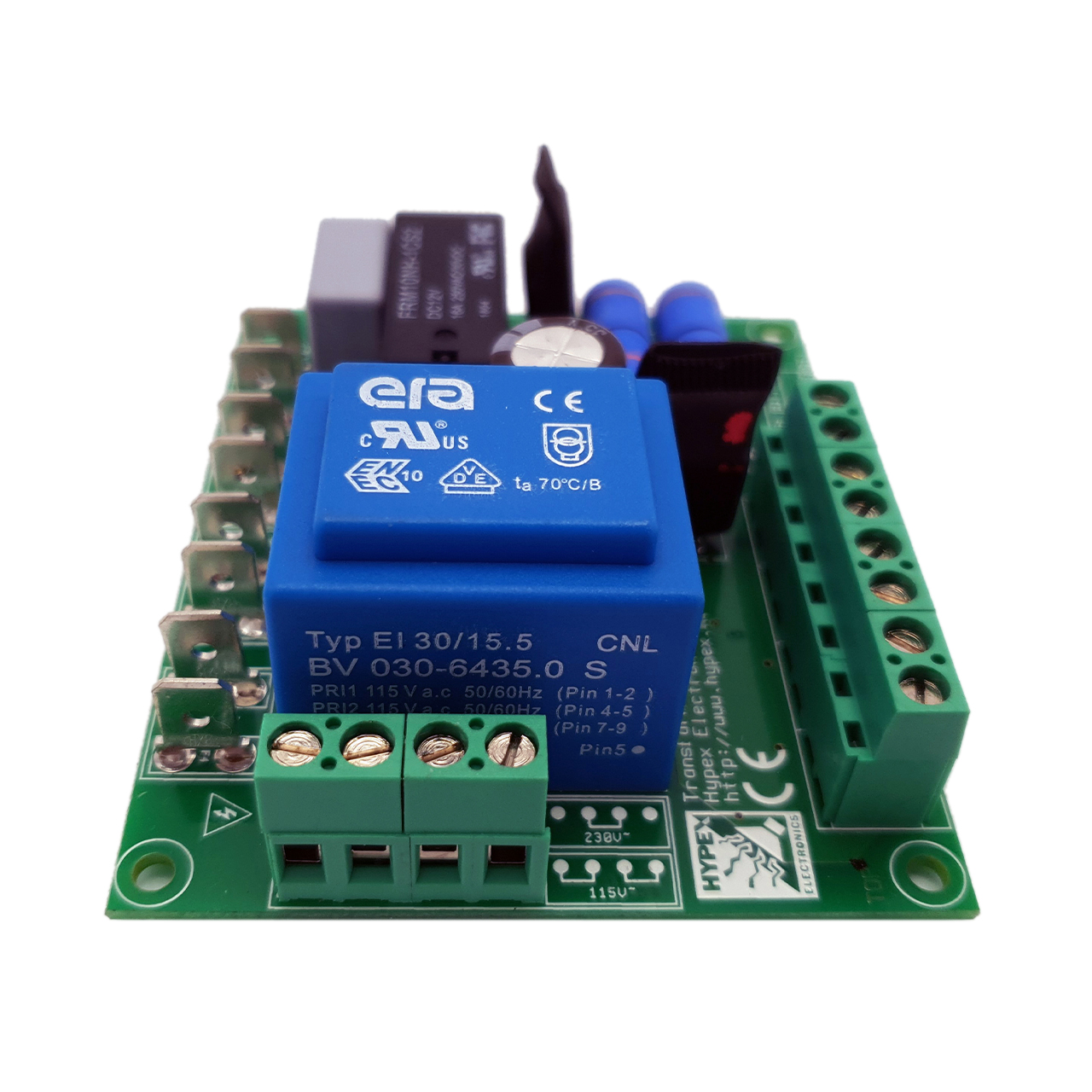

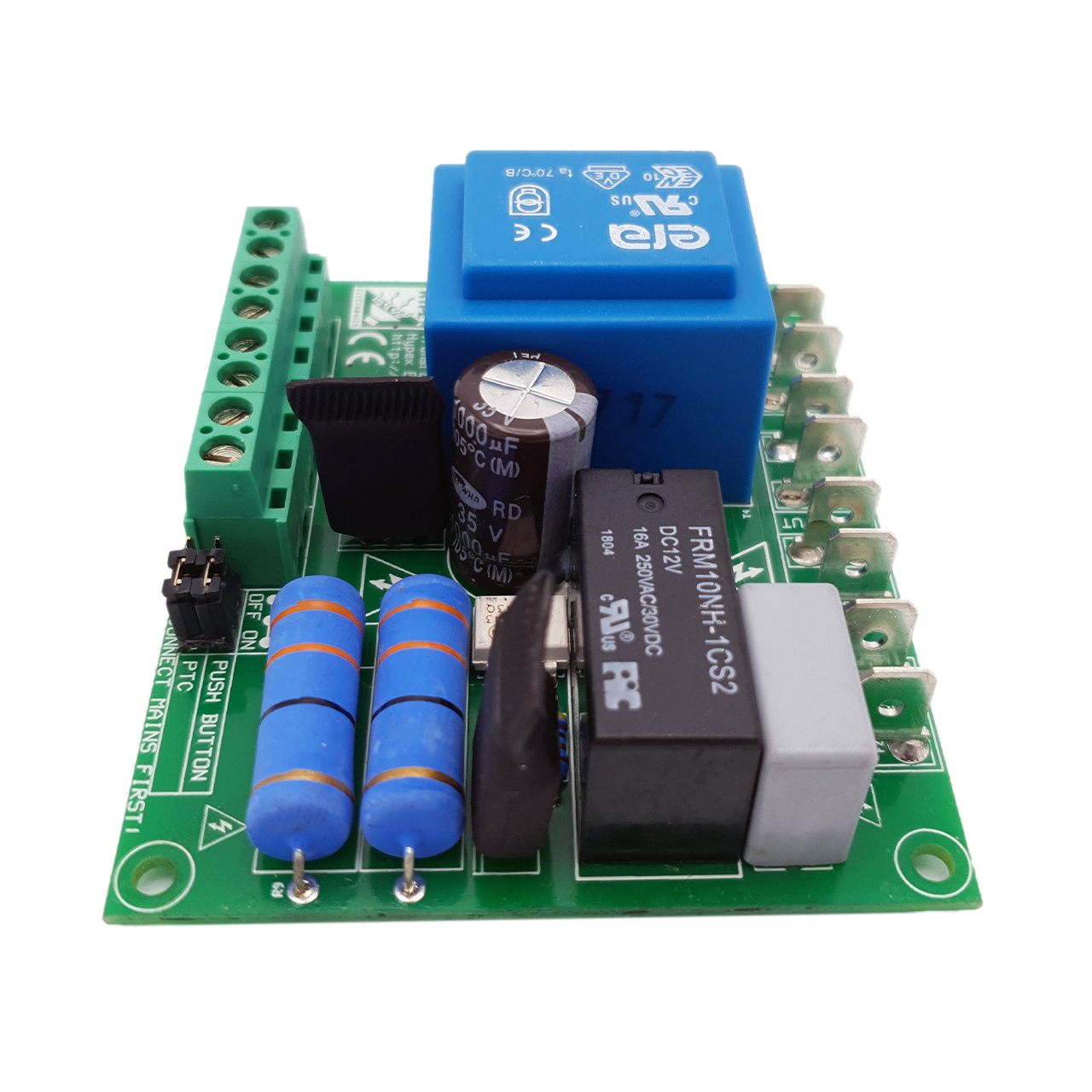

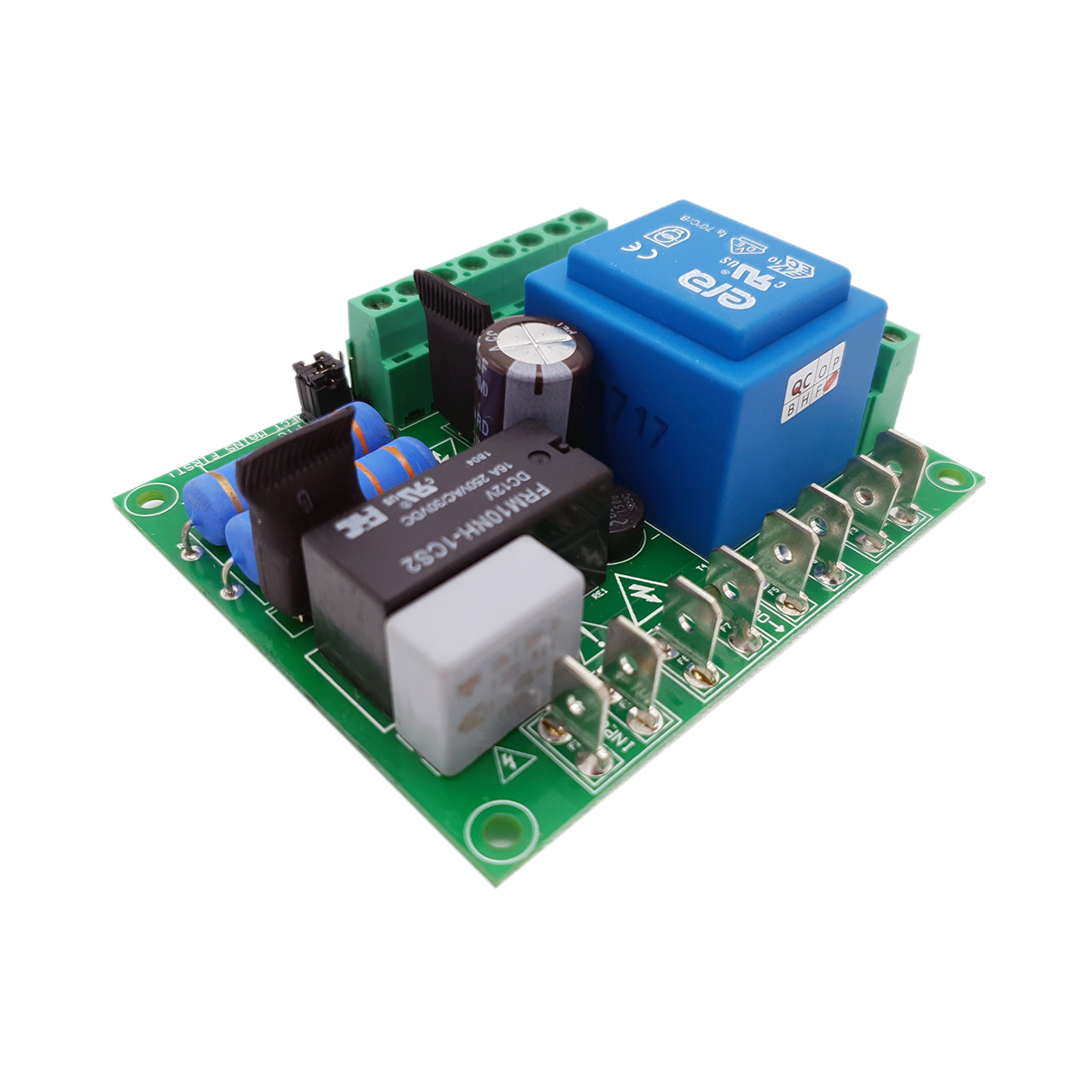

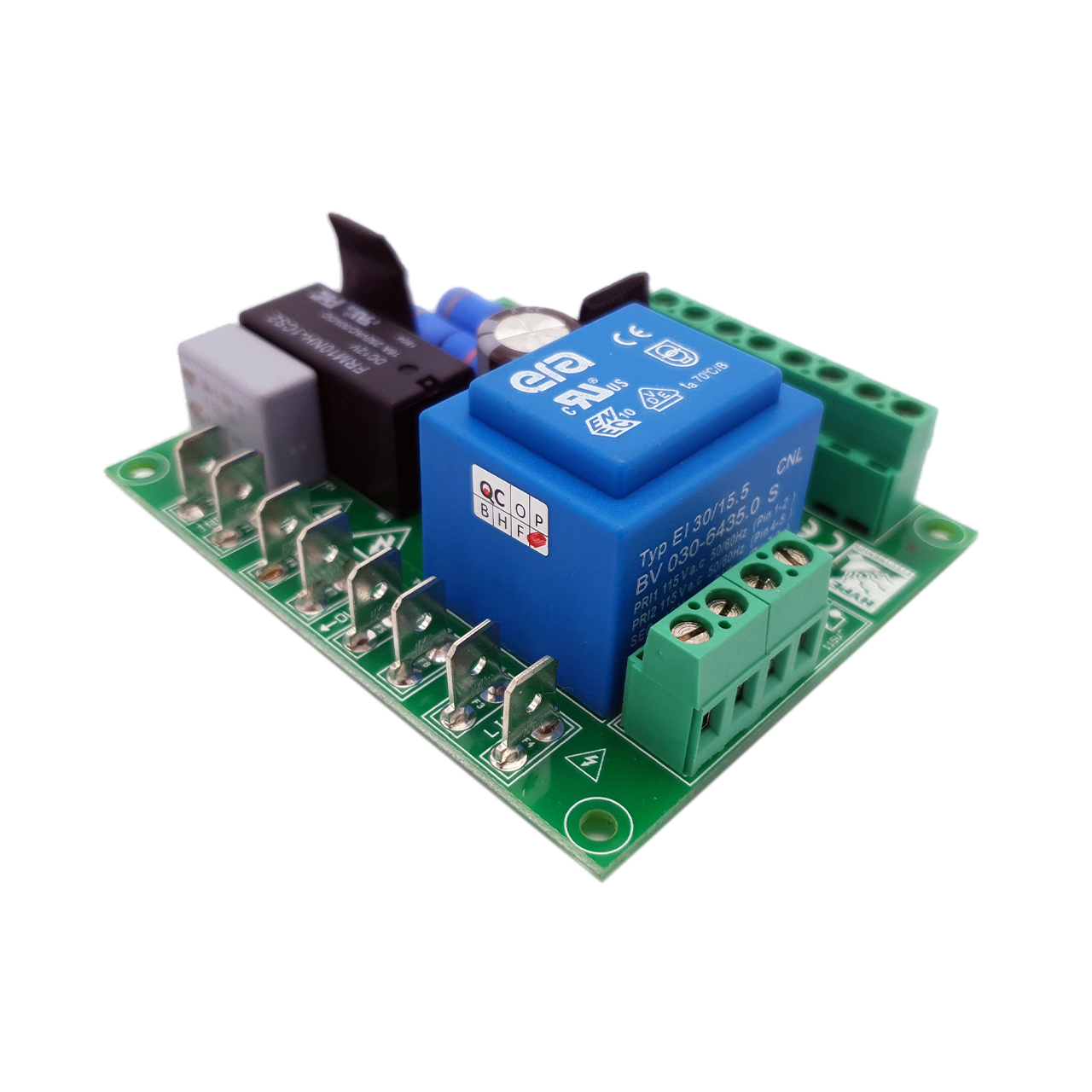

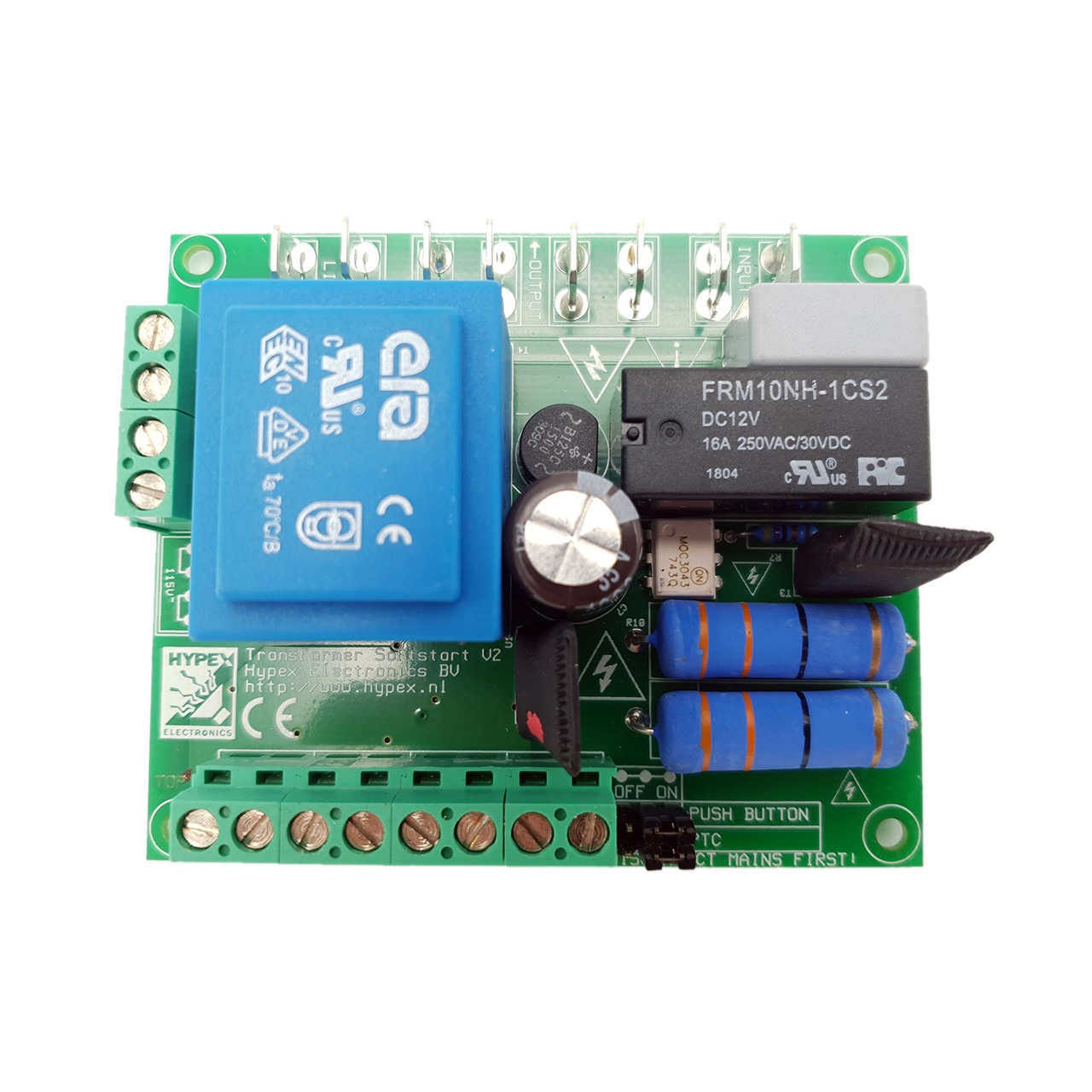

Softstart Module
H08U000401
MSRP:
€30.00
Product information "Softstart Module"
Softstart module to minimize transformer inrush currents and provide for push button control at the same time.
Temperature critical applications can be monitored with a thermistor (PTC not included). Module state can be indicated with one or two LED's (LED not included).
Temperature critical applications can be monitored with a thermistor (PTC not included). Module state can be indicated with one or two LED's (LED not included).
APPLICATIONS:
- mono/stereo amplifier
GENERAL FEATURES:
- Transformer inrush current limiter
- Pushbutton control
- Low power switch control
- Temperature monitoring
- Single/dual LED indication
ELECTRICAL FEATURES:
- 115/230V operation
- Maximum 1500VA output
- Maximum of 6A continuous current
Automatic input voltage selection: | No, Selectable with jumper |
---|---|
Mains voltage input: | 230V / 115V |
