FusionAmp FA122

Product information "FusionAmp FA122"

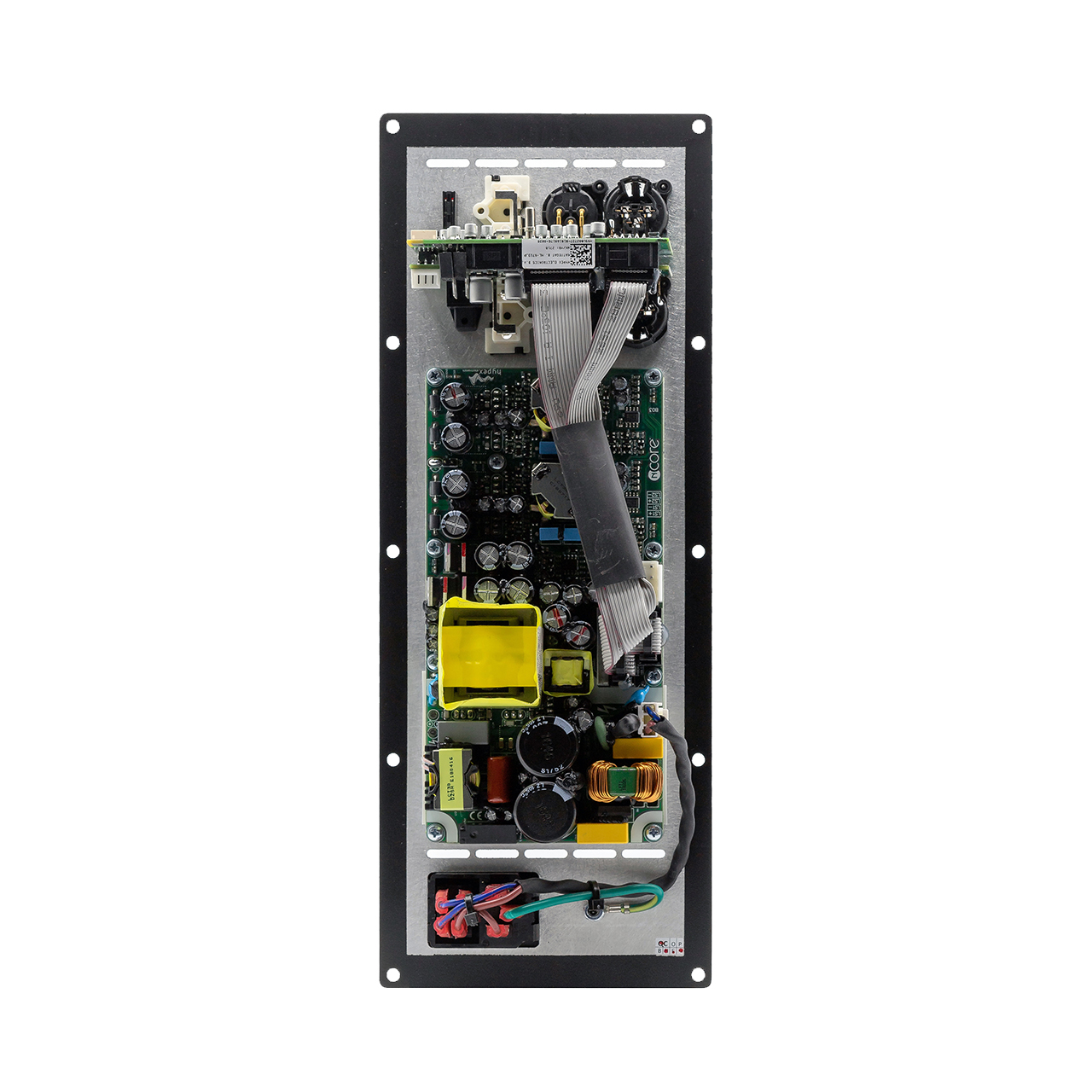

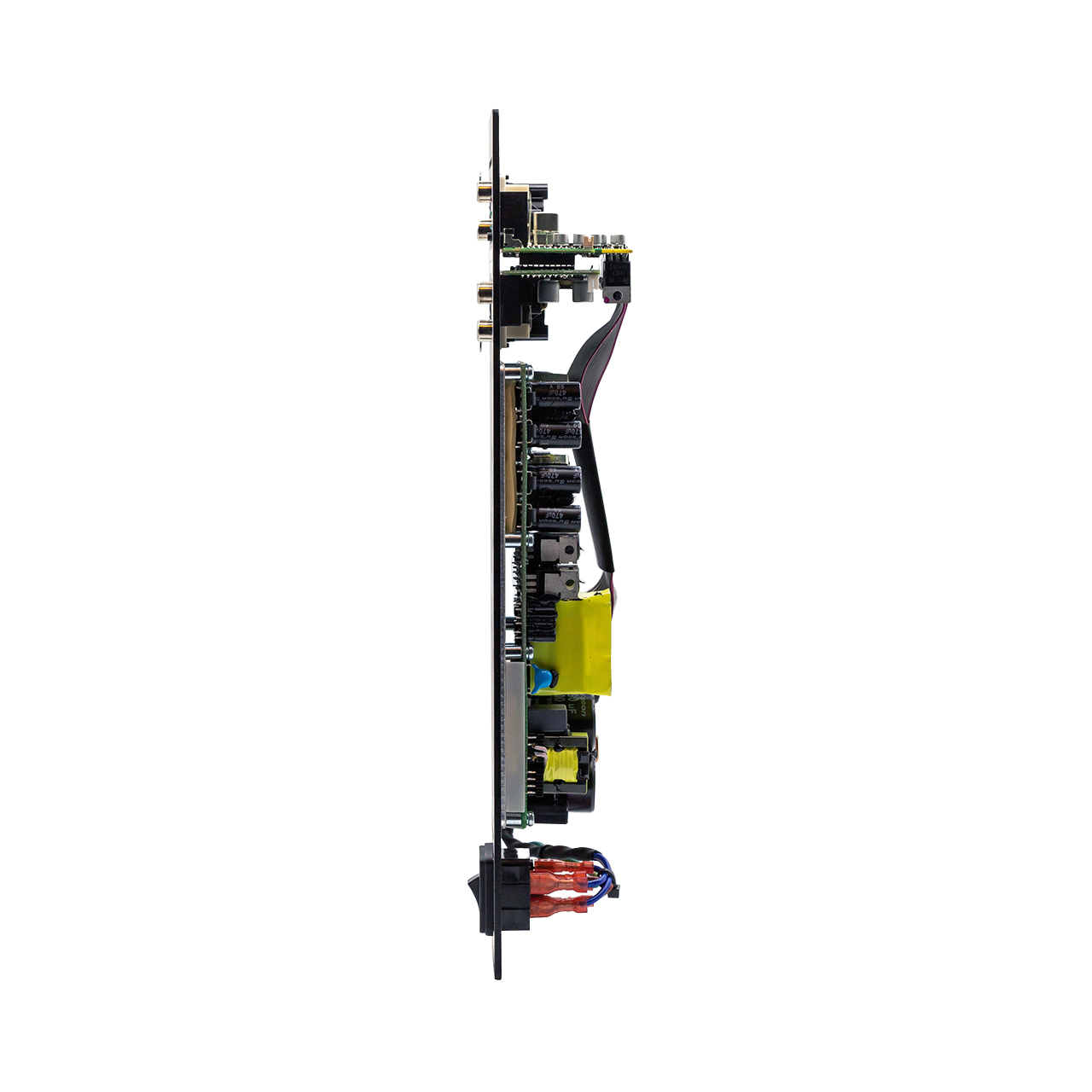

This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor. The FA122 has two 125 Wrms Ncore® amplifiers which can also be bridged to form one powerful 250 Wrms amplifier.


  • Analogue balanced XLR in and through
  • Analogue unbalanced RCA input
  • Digital AES in and through
  • Digital S/PDIF in and through
  • Digital Optical TosLink input
  • USB 2.0 configuration interface


  • 15 biquads per amplifier
  • Three selectable presets for filters
  • Source selection
  • Signal detect
  • Auto shutdown
  • BTL capable
  • Clip protect
  • Thermal protect
  • Filter protection

What is included in the box

  • The FA122
  • A printed copy of the user guide
  • Speaker connection cables

Power (4Ω): 2 x 125W
Power (8Ω): 2 x 75W
Channels: 1 channel / 2 way
Technology: NCORE®
Family: Fusion Amp Family
Mains voltage input: 100-120Vac / 200-240Vac ±10%
