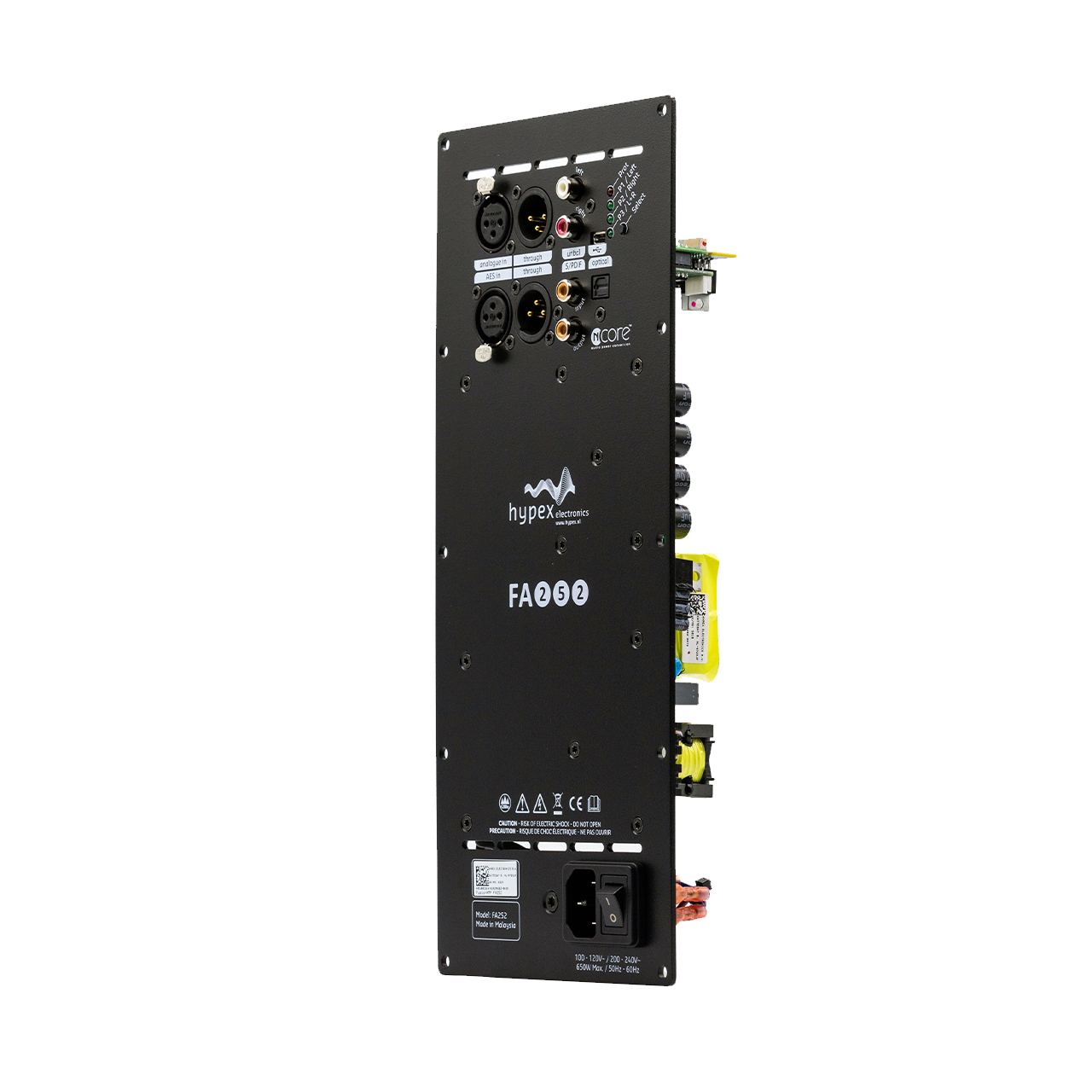

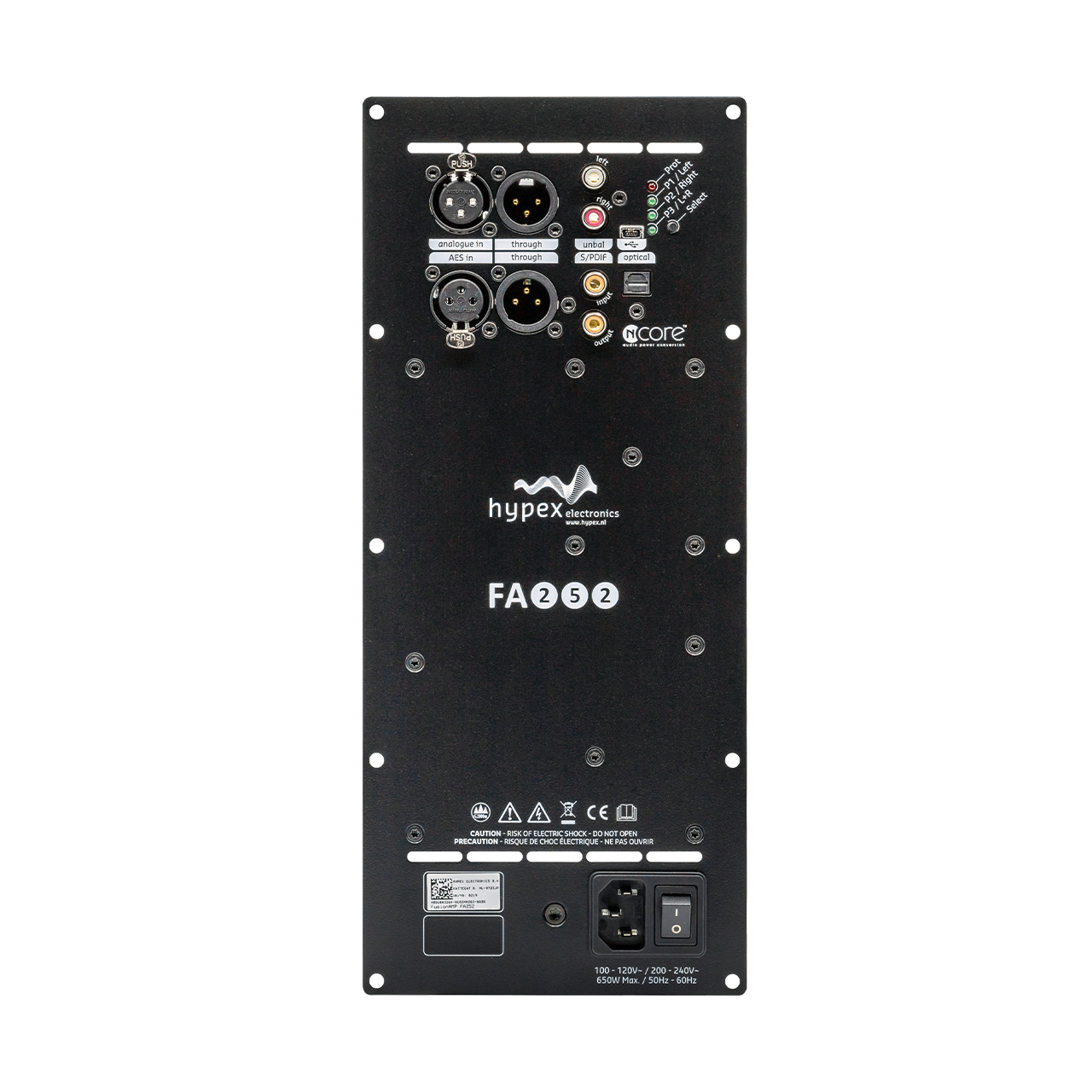

FusionAmp FA252

H05U003264

€472.50

Prices excl. VAT plus shipping costs

In Stock

Downloads

CAD drawings

documentation

firmware

manuals

Fusion Manual R4.pdf

software

Product information "FusionAmp FA252"

This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor. The FA252 has two 250 Wrms Ncore® amplifiers which can also be bridged to form one powerful 500 Wrms amplifier.

Connections

Analogue balanced XLR in and through
Analogue unbalanced RCA input
Digital AES in and through
Digital S/PDIF in and through
Digital Optical TosLink input
USB 2.0 configuration interface

Features

15 biquads per amplifier
Three selectable presets for filters
Source selection
Signal detect
Auto shutdown
BTL capable
Clip protect
Thermal protect
Filter protection

What is included in the box

The FA252
A printed copy of the user guide
Speaker connection cables

Power (4Ω):	2 x 250W
Power (8Ω):	2 x 150W
Channels:	1 channel / 2 way
Technology:	NCORE®
Family:	Fusion Amp Family
Mains voltage input:	100-120Vac / 200-240Vac ±10%

Recommended additional products

Free download

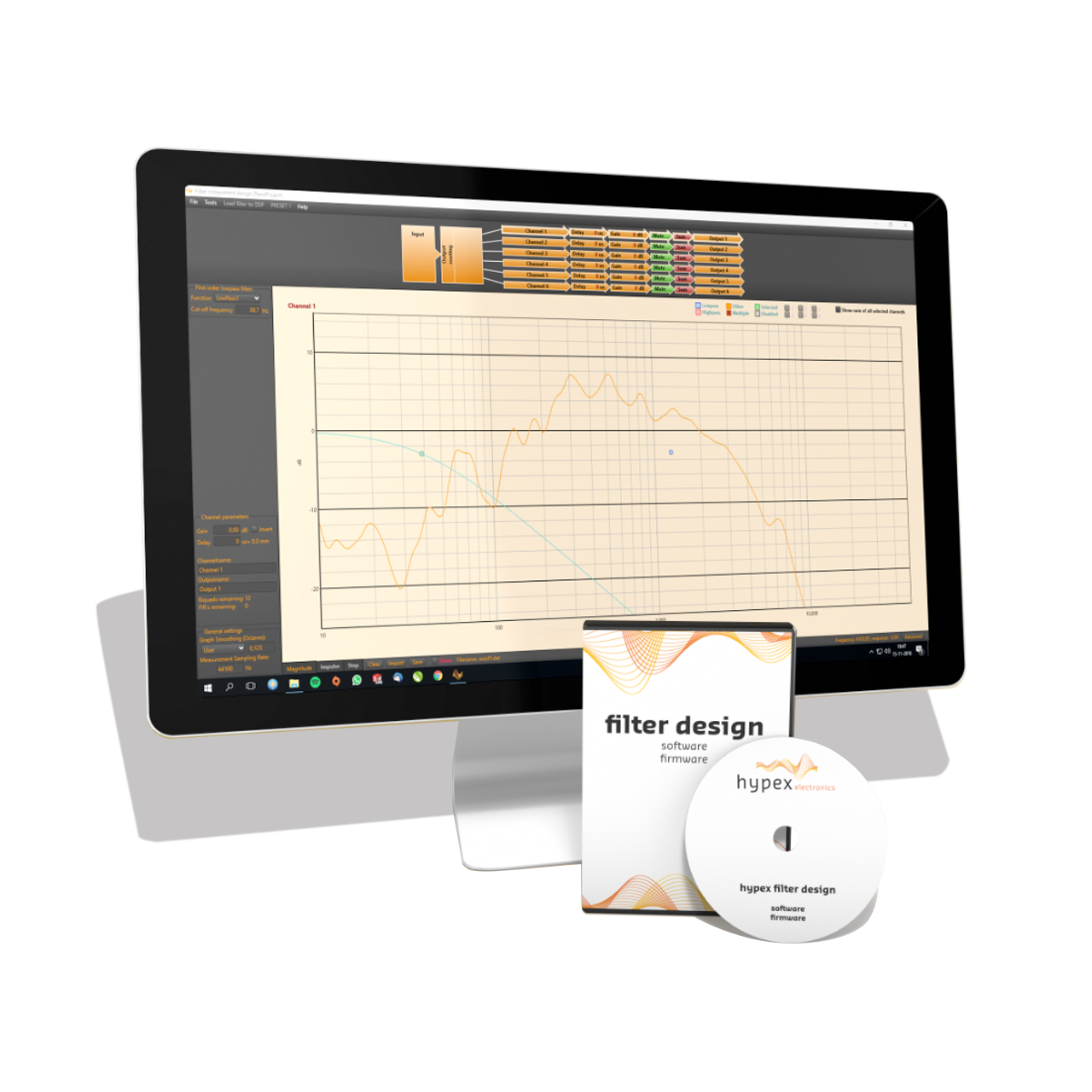

Hypex Filter Design
