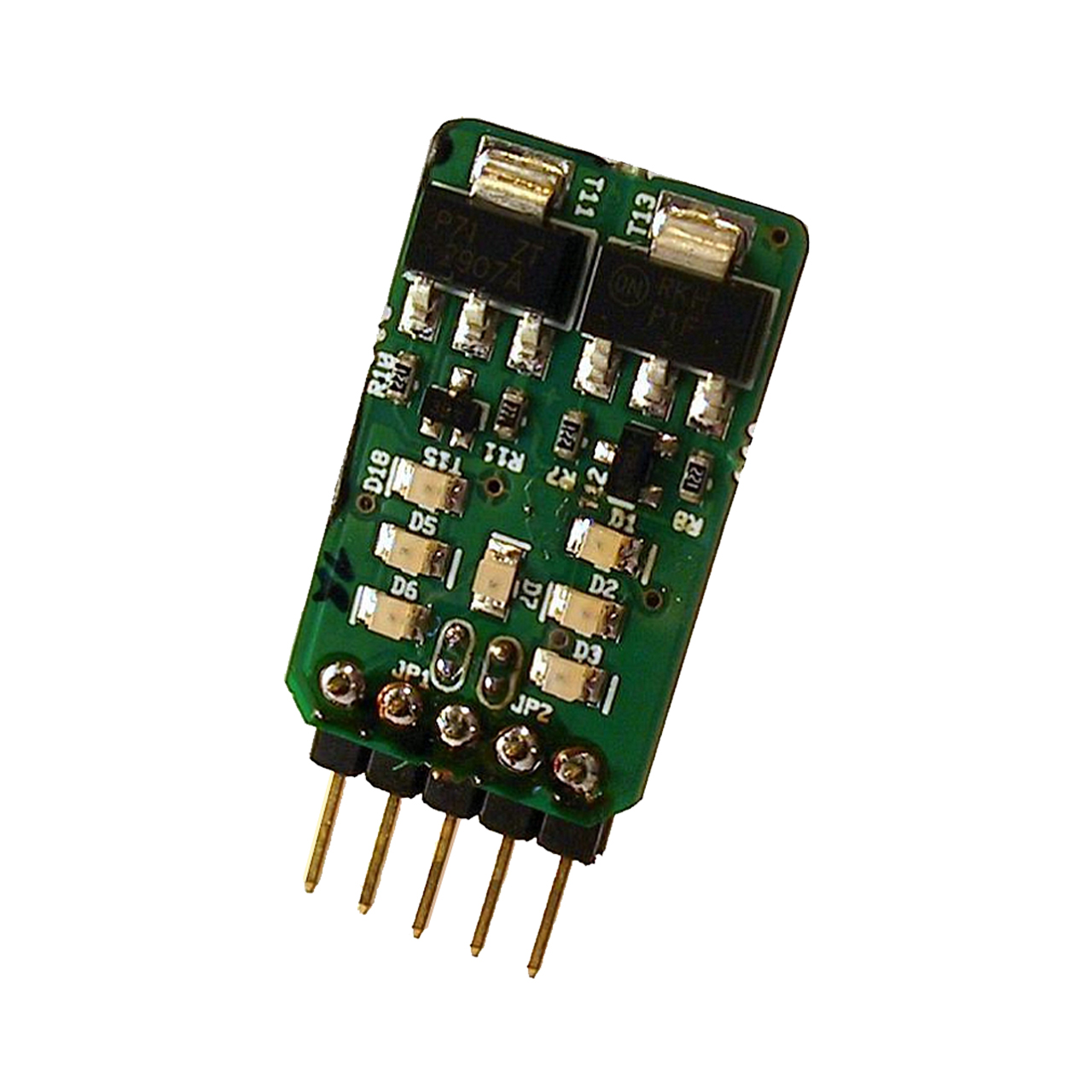

The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HPR12 is a 12V regulator.APPLICATIONS:Preamplifiers and buffersRIAA input stagesPlayback head amplifiersPerformance upgrade for existing products FEATURES:Ultra-low noiceWide bandwidthExcellent ripple rejectionLow, load-independend output impedanceKelvin sense connectionsSize and pin compatible with TO-220 style regulators
Introducing the Fusion OLED Display – the perfect enhancement for all Fusion Amplifier Family models and the DSP3-213. Elevate your audio experience with this sleek display, designed to provide you with essential information at a glance. Whether it's monitoring volume levels, identifying active inputs, accessing presets, or staying informed about any error messages, the Fusion OLED Display ensures that every detail is effortlessly visible from your preferred listening position.
Installing the Fusion OLED Display is a breeze. Designed for external attachment to the speaker cabinet, it comes equipped with double adhesive tape for easy and secure assembly. When integrated into a master-slave configuration, consider placing the display on the master device, especially if you plan to use the Hypex remote (remote not included). Please note that in slave devices, the IR functionality will be disabled while still offering all other benefits.
The Fusion OLED Display includes:
1 x Fusion OLED Display
1 x 5 pin cable 125cm
1x Quick guide (Refer to the 'Downloads' tab for the complete User Manual)
Upgrade your audio setup with the Fusion OLED Display – where information meets elegance.
The Hypex Remote control is a remote control which can be used in combination with the DLCP add on set or the Fusion Amp remote kit to control volume, source and put the system into standby. A battery is included.
All models of the FusionAmp range can be extended with this Fusion Remote Kit. This set contains a PCBA with IR receiver and bi-colour LED, a plexiglas front with double adhesive tape, 2 lightpipes, the necessary cable (125cm) and screws. You can mount this kit from the inside or outside of the speaker cabinet. This set must be used in master devices if the Hypex remote is to be used (remote not included). Furthermore, this set can also be added in slave devices, but the IR functionality will be disabled. The green LED acts as on-off indicator, the red LED mirrors the protect indicator. Package contents: ScrewsPCBA with IR receiver, bi-colour LEDPlexiglas frontsheet of double adhesive tape2pcs light pipes5 pin cable 125cm
The FusionAmp models must be mounted into the speaker cabinet with 8 or 10screws. This set contains 10 self tapping, black, Phillips head screws, 4,3x25mm.
Hypex Filter Designer (HFD) is a program to configure Hypex Electronics B.V. DSP modules. This software is only available for Windows.
Download only
The Hypex Filter Designer is free of charge and only available as a download. You can select and download the software and documentation from within the downloads tab on this page.
HFD v4 software consists of the following areas:
Main Screen
Device settings screen
Filter design graphical screen
Filter design advanced screen
The general functions of HFD are:
Volume Control
Mute (global and per channel Channel assignment
Subout Control
Load measurements for speakers (Impulse response)
Take measurements
Input gain adapt
Load/apply microphone correction data
Stepresponse/Impulseresponse/Magnitude
View sum of filters
Invert filter functions
Delay
Graph smoothing
Wide range of Biquad filter setups
This is the exact same case as provided with the NC400 MONO KIT. The case is full aluminium for optimal heat conduction. It contains pre-drilled holes for the following modules with their respective supplies: NC400 + SMPS600 UcD700HG + SMPS1200 Internal size: 193mm(W) x 58mm(H) x 265mm(D) External size: 200mm(W) x 79mm(H) x 280mm(D) (size incl feet, excl connectors)

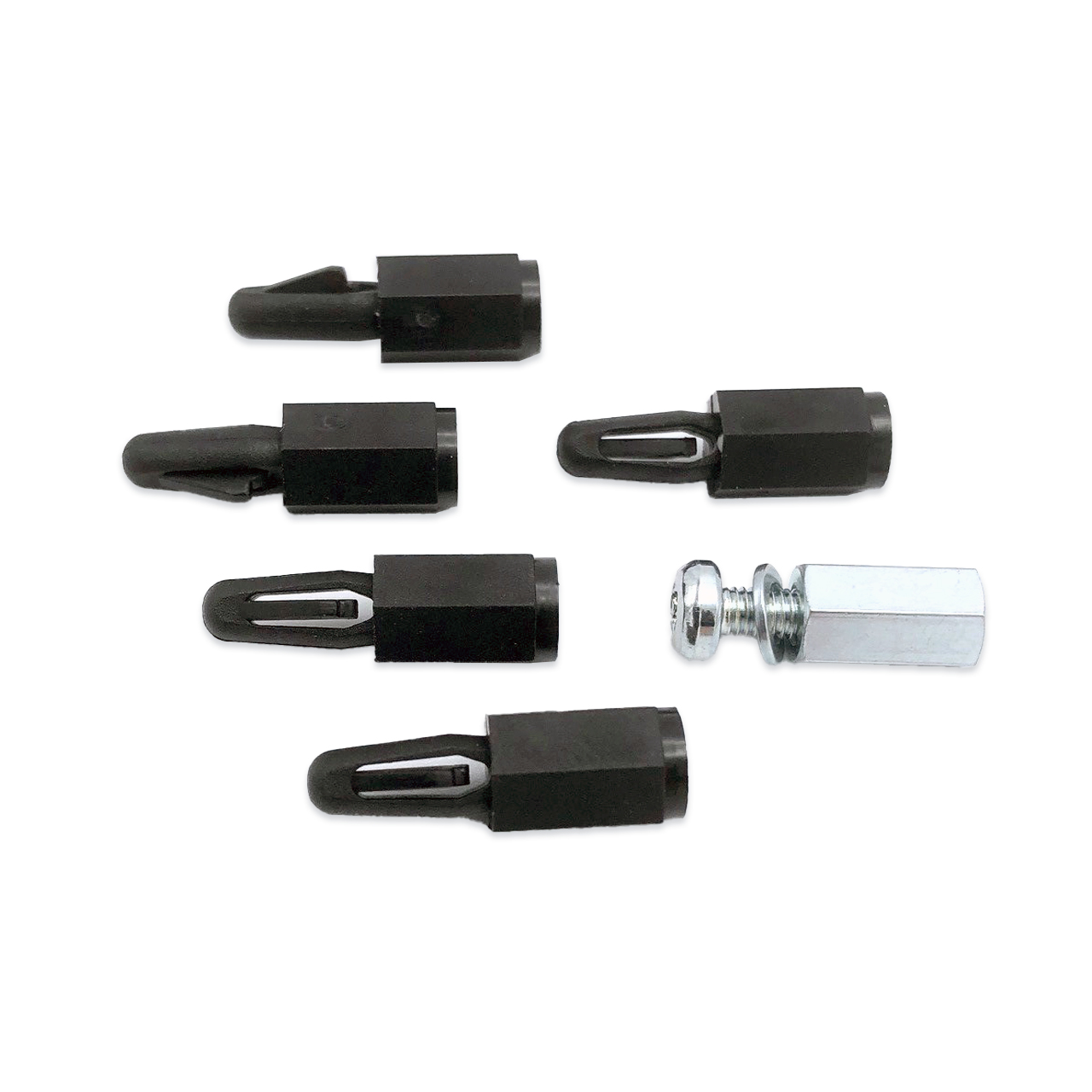

These spacers can be used with the SMPS400 and UcD3xMP's to ensure that the minimum safety clearance requirements are met. APPLICATIONS:Mounting the SMPS400, UcD32MP, UcD34MP, UcD36MP FEATURES:Weight: 2gDimensions: 19.5(10)mm x 6mmthread: M3PCB mounting hole: 4mm packing quantity: 6 pieces One metal spacer included
This sticker of Hypex can be used on your case or other product where Hypex products are used. Show others what modules you have used to build your own amplifier. Dimensions 50x20mm.
The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HNR12 is a 12V regulator.APPLICATIONS:Preamplifiers and buffersRIAA input stagesPlayback head amplifiersPerformance upgrade for existing products FEATURES:Ultra-low noiceWide bandwidthExcellent ripple rejectionLow, load-independend output impedanceKelvin sense connectionsSize and pin compatible with TO-220 style regulators
